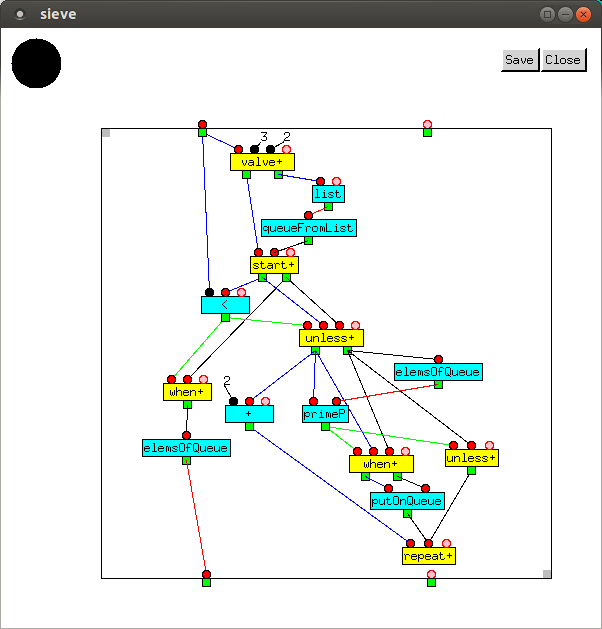

Collecting the primes
sieve returns a list of prime numbers up to
its argument, n. It starts with a queue containing just the value 2,
and iterates through odd numbers from 3 until n is reached. Any which are
found to be prime are added to the end of the queue. A queue is used
instead of a list to ensure that values in the returned list are in the
correct order.
In the Lisp dialect Emblem, this is:
(defun sieve (n)
(do ((i 3 (+ i 2))
(q (queueFromList (list 2))
(if (primeP i (elemsOfQueue q))
(putOnQueue i q)
q)))
((< n i) (elemsOfQueue q)))))
Balancing the inputs
By inspection, it can be verified that each vertex's
inputs receives the same number of values, as follows:
Senders
Input Count
Vertex
Output Count
ingate  1  valve+  1
valve+  1  list  1
list  1  queueFromList  1
valve+
queueFromList  1  start+  N
ingate
start+  N  <  N
<
start+  N  when+ (from < )  1
<
start+  N  unless+ (from < )  N1
when+  1  elemsOfQueue  1
unless+  N1  +  N1
unless+  N1  elemsOfQueue  N1
unless+
elemsOfQueue  N1  primeP  N1
primeP
unless+  N1  when+  P
primeP
unless+  N1  unless+  N1P
when+  P  putOnQueue  P
+
putOnQueue and unless+  N1  repeat+  0
Bugs to avoid
The likeliest bug is not feeding back the unaltered queue
in the slave loop if the number isn't prime. Next, if the second input
of > in the master loop is not sticky, it would only execute
once, as it is injected into the loop from outside and would be immediately
consumed. Thirdly, as list structure used in the queue of primes is
destructively modified (added to) when putOnQueue is called,
it is essential to initialize it with a fresh list by calling list .
Finally, it is important to verify that the inputs on each vertex
are balanced.
Testing the primes
The first input value of primeP is the number
being tested, and the second is the list of primes less than it. As
primeP is only required inside sieve , it only needs
to test numbers which haven't been tested yet. As all the numbers less
than the number we're currently testing will already have been tested,
we already have all the primes we need. (Actually more than we need,
since when testing a number for primeness, we only need primes up to its
square root.)

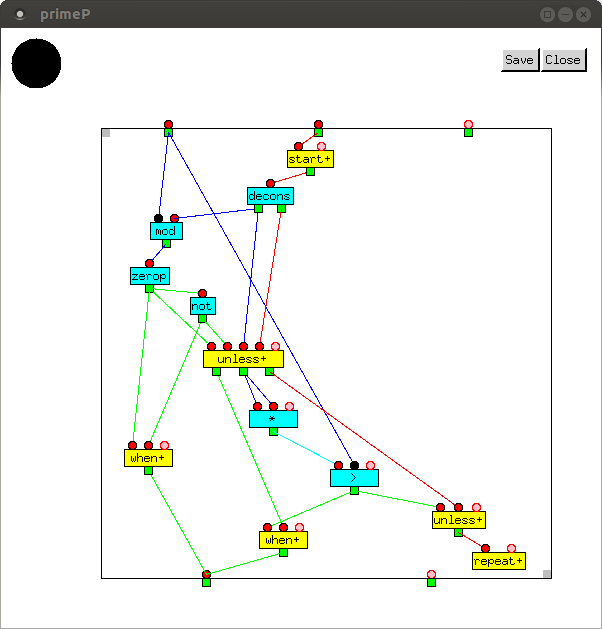

primeP iterates through the list of primes,
and if one exactly divides the number (its remainder is zero), the number
is not a prime, and primeP returns NIL .
Otherwise, if a prime squared is greater than the number, we've checked
all the primes on the list we need to, and none was an exact divisor,
so we return T .
For clarity, in the Lisp shown below, the expression
(zerop (mod i (car primes))) to test if the remainder is zero
was repeated. A temporary variable could have been used instead.
In the Full Metal Jacket code, we simply added another edge from the
not vertex. Finally, two sticky values were needed as a
value was being injected into a loop.
(defun primeP (i listOfPrimes)
(do ((primes listOfPrimes (cdr primes)))
((or (zerop (mod i (car primes)))
(> (* (car primes) (car primes)) i))
(not (zerop (mod i (car primes)))))))

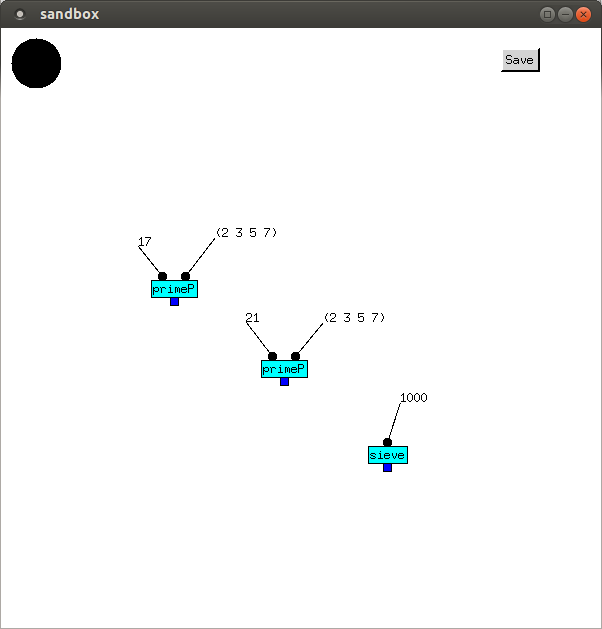

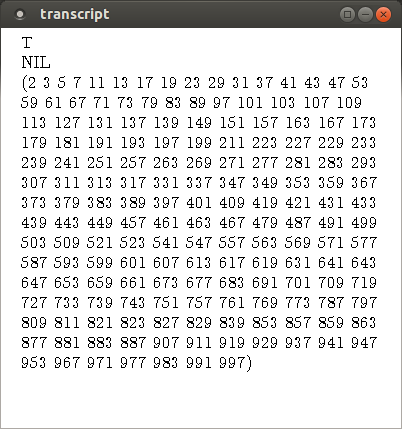

Two call to primeP , followed by one to
sieve are shown, followed by their output.
